Using sand, gravel, and cement, and with the addition of large quantities of fly ash, slag, steel slag, coal ash, ceramsite, perlite, and other industrial waste, we produce various exterior wall blocks, interior wall blocks, PC imitation stone permeable bricks, decorative wall blocks, floor slabs, embankment blocks, interlocking blocks, curb stones, and other blocks. We can also add a colored fabric application device to produce colored paving bricks of various specifications.

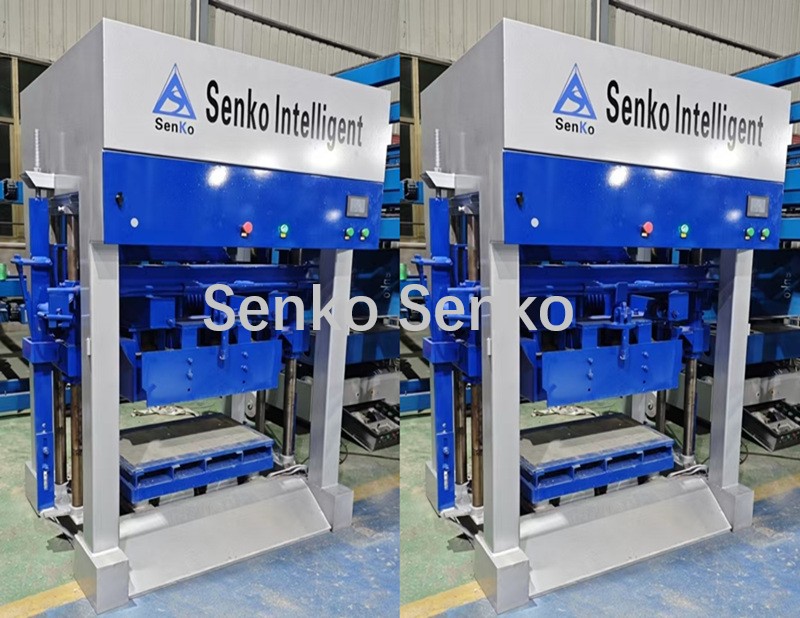

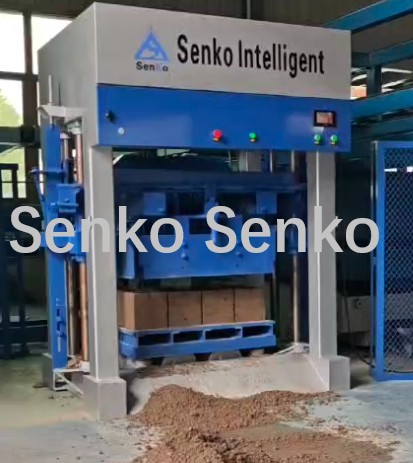

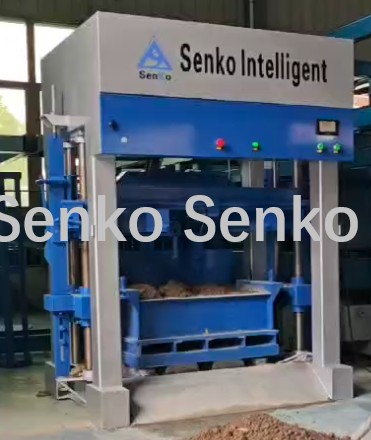

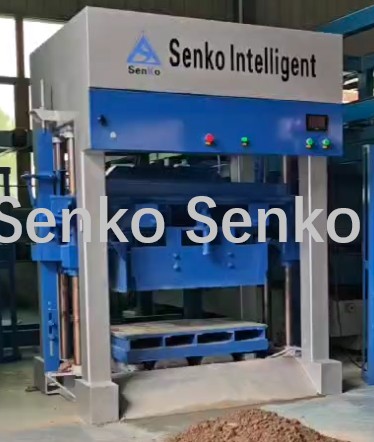

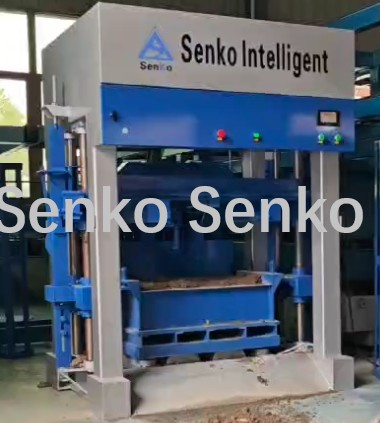

Manual Brick/Block Forming Machine (Model: SKSM4-15)
Mold Preparation: Clean the mold and apply a release agent (such as waste engine oil) to prevent adhesion.
Filling Material: Fill the mold cavity with pre-mixed concrete or clay raw materials.
Preliminary Compaction: Perform initial air removal and compaction via manual pre-pressing or vibration (if equipped with a basic vibration feature).
Applying High Pressure: Utilize a lever or manual hydraulic pump to apply continuous, high pressure to the material, ensuring dense formation within the mold.
Demolding: Release the pressure and extract the formed brick using the ejection mechanism or by directly opening the mold.
Curing: Transfer the bricks to a curing area for natural air drying or steam curing to achieve their final strength.
Product Advantages:
1.This machine adopts top die push and pull and automatic scraper, which is simple to operate as well as the large-scale equipment. All movement are controlled by buttons, which is simple to operate.
2. The machine is the reformed machine with reasonable design, favorable property, and super-strong vibration motor. And it manufactures bricks with good quality, large density, and high strength.
Parameter List
|
NO. |
Item |
SPECIFICATION |
|
1 |
Model |
SKSM4-15 |
|
2 |
Lift motor Up mold forward and backward move Vibration |
2.2KW 0.75KW 1.1KW |
|
3 |
Dimension of whole machine |
1900*1700*2000mm (L*W*H) (Could be customized) |
|
4 |
Dimension of mold |
850*500*230mm (Could be customized) |
|
5 |
Dimension of hollow block (4 block in one line) |
400*200*200mm( L*W*H) |
|
6 |
Cycle time |
25-35 second/ time |
Finished Products:
